LED Roue Cyr – Jig to slot tubing

Circus/Cyr Wheel

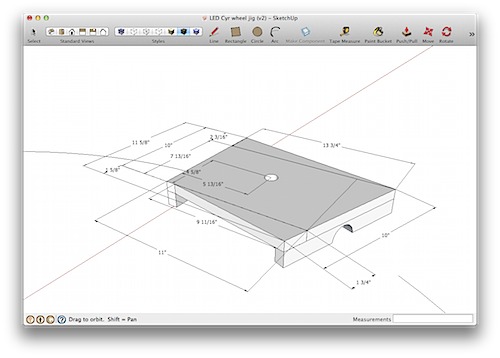

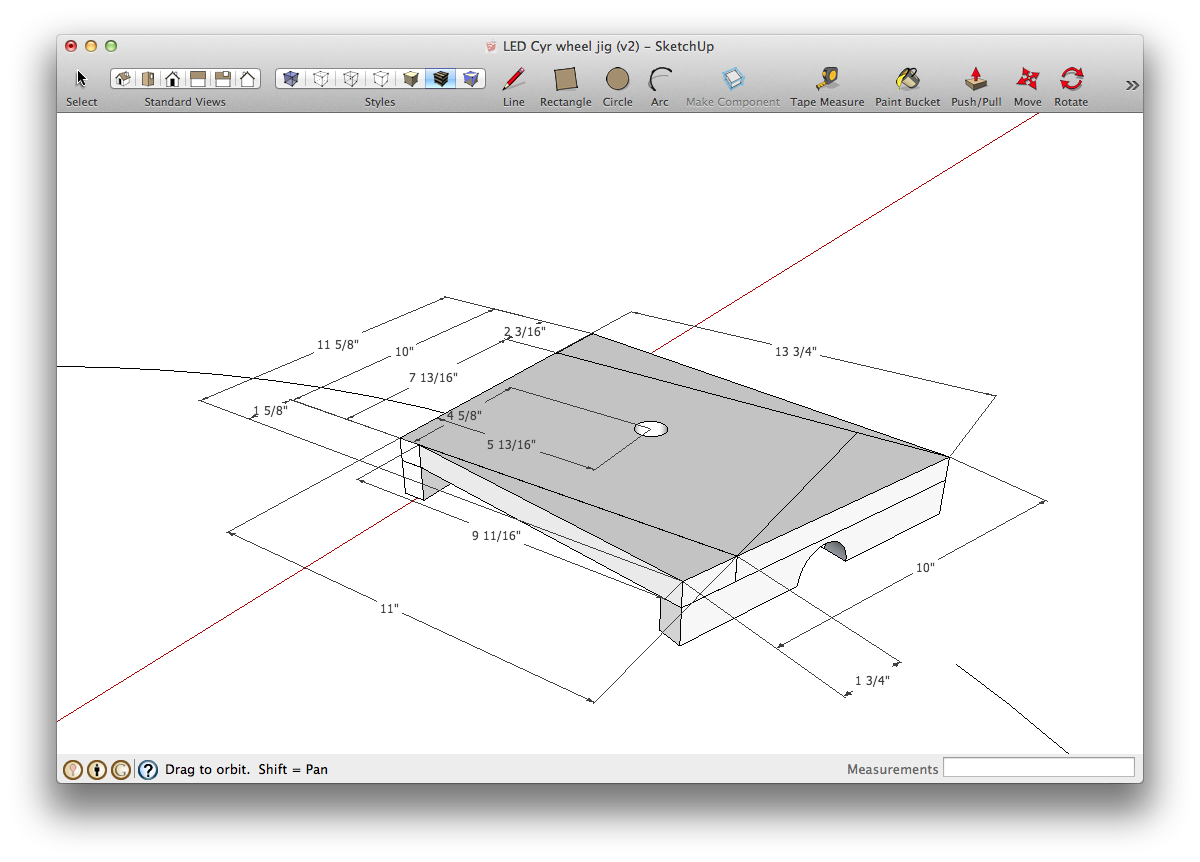

Here’s a sketch up design I did of a jig to cut a groove in the PVC tubing for the LEDs. A router will be attached in the center; it will (hopefully) be used to move over the horizontal wheel on the ground and rout out a groove for the LEDs.

Screen Shot 2014-01-05 at 8.58.43 PM.png

Sketchup file:(LED Cyr wheel jig (v2).skp)
