Angular Velocity in cyr wheel

Circus/Cyr Wheel

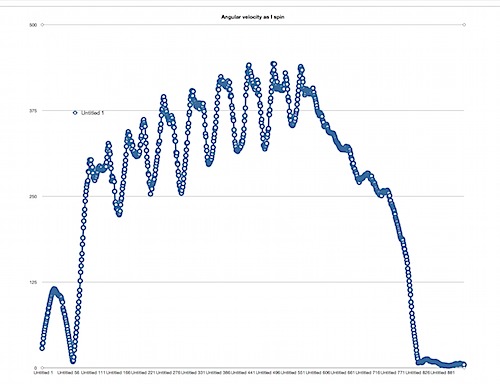

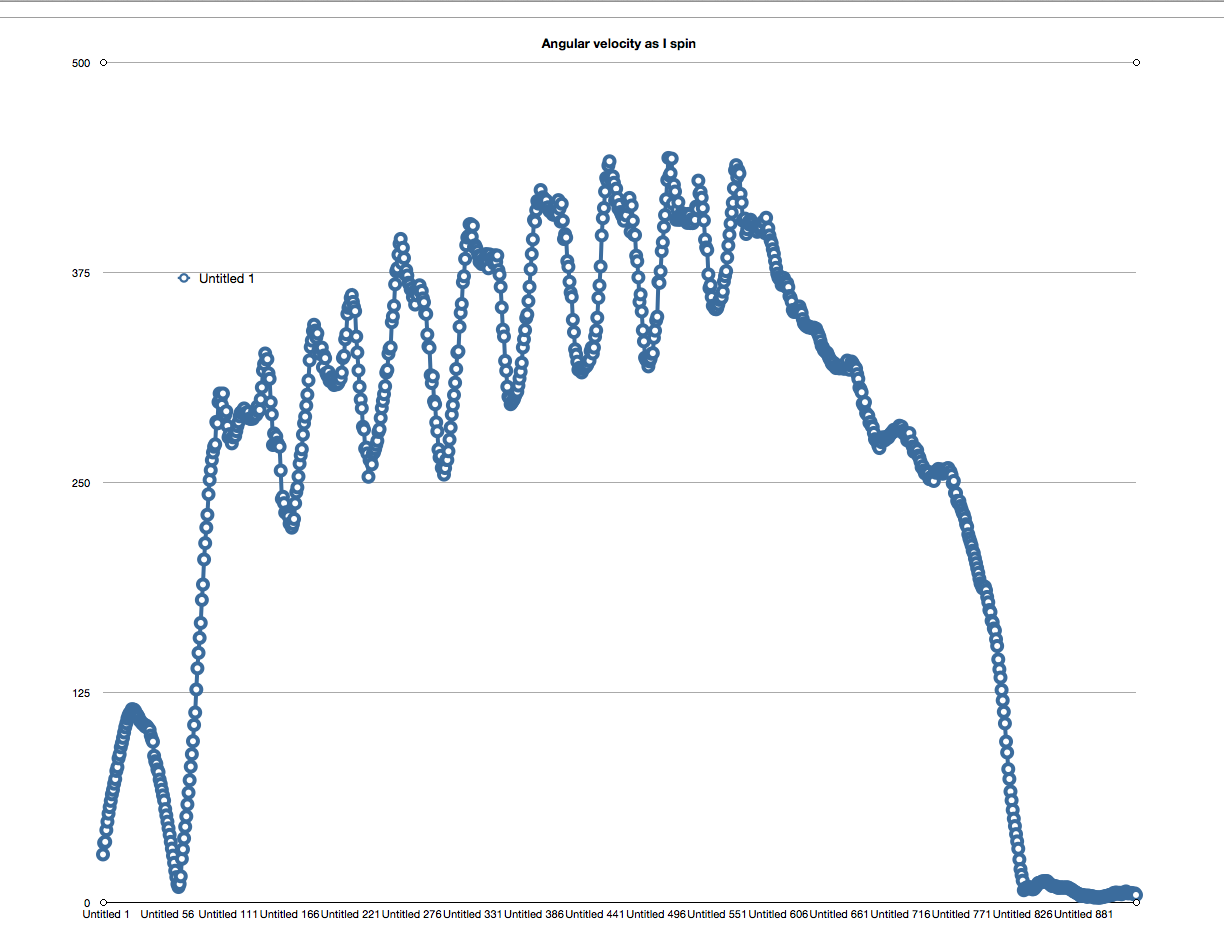

This is a plot of the angular velocity vector when spinning in my cyr wheel. I took the gyro x/y/z value and created a vector (squared each value, added them, and took the square root).

Screen Shot 2014-05-10 at 11.29.03 PM.png

The downward start was from back spin “wind up” hat I did. I then increased velocity to a high speed, and you can clearly see when I give it an extra “umph” each revolution around. It was probably about 7 revs I did in the wheel. Values are (apparently) degrees per second. So, I spin about 1.5 times every second.
