LED Cyr Wheel V3:Jig, and the circle

Circus/Cyr Wheel

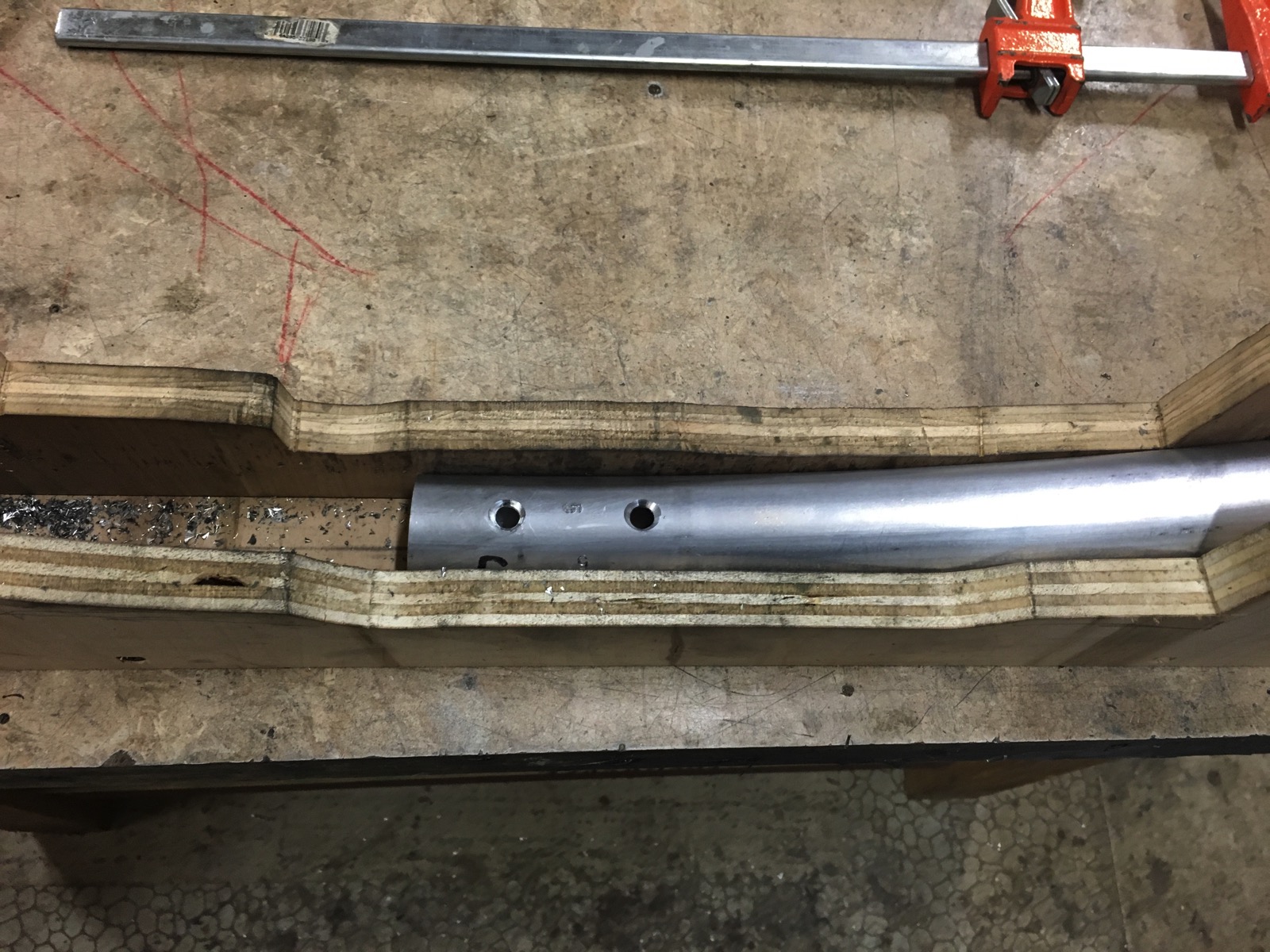

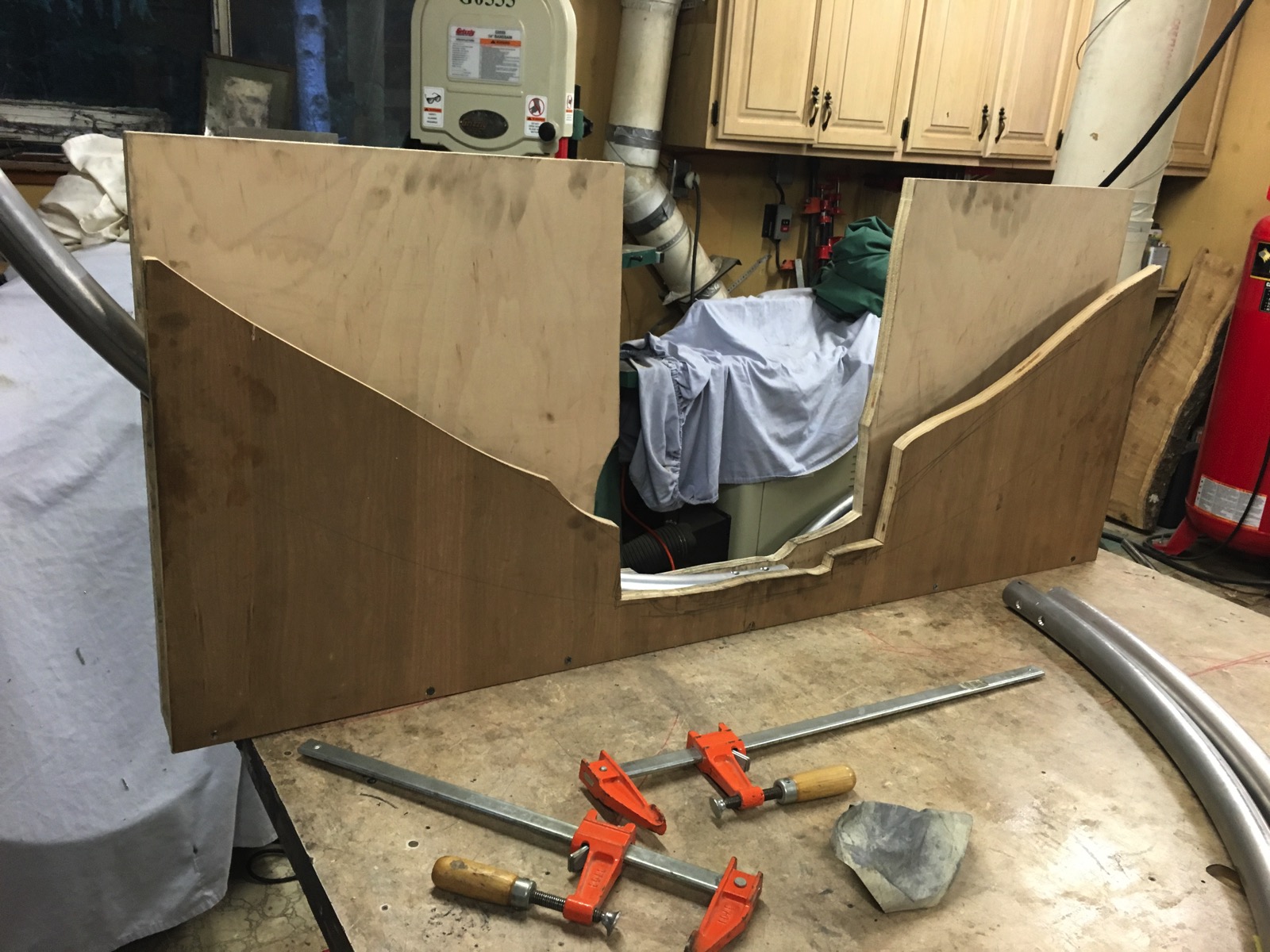

My drilling/tapping jig to hold the wheel steady while I drill and tap the inserts:

IMG 6014



IMG 6015

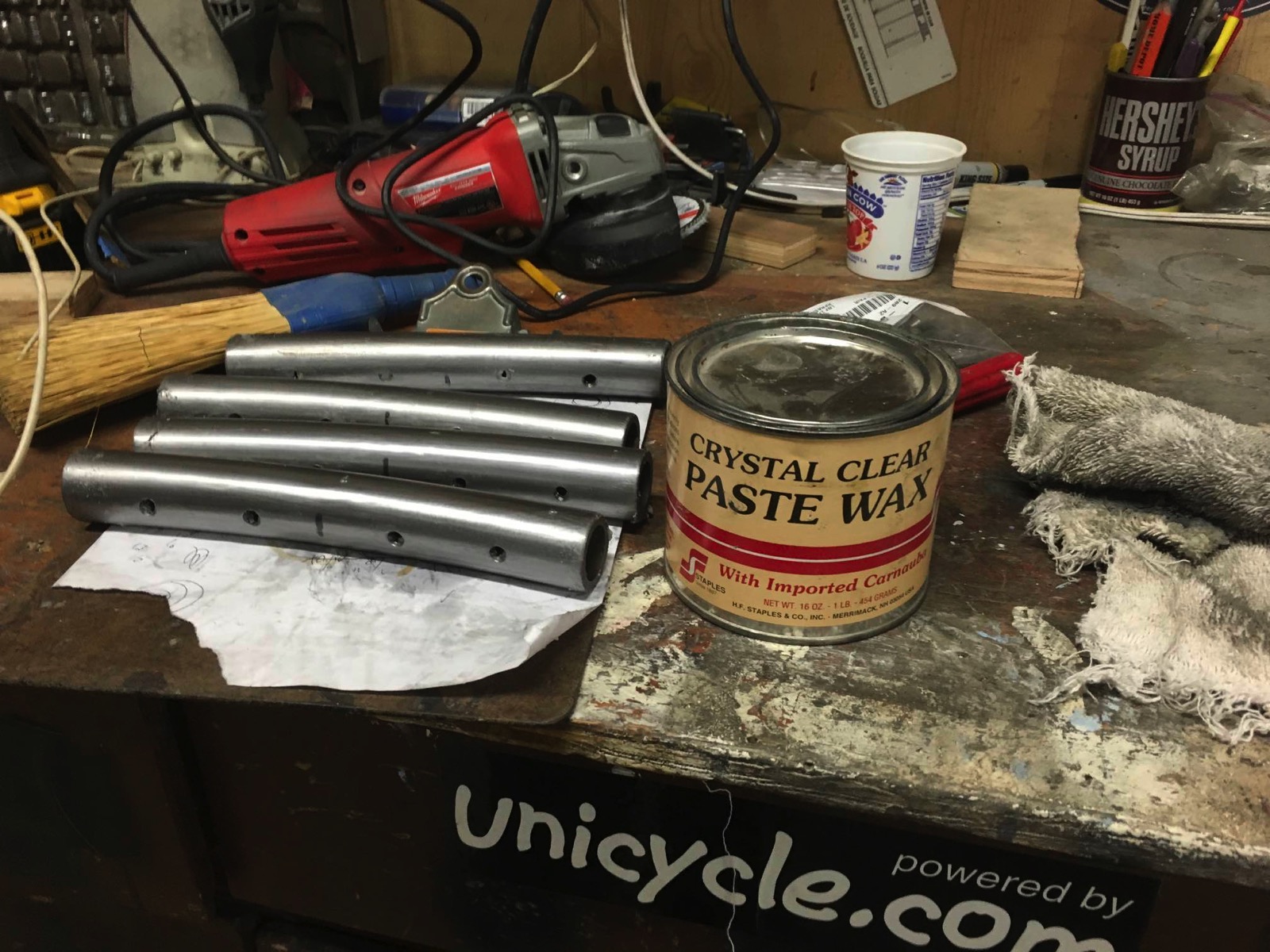

I put a coat of paste wax on the inserts to make them slide easily:

IMG 6016

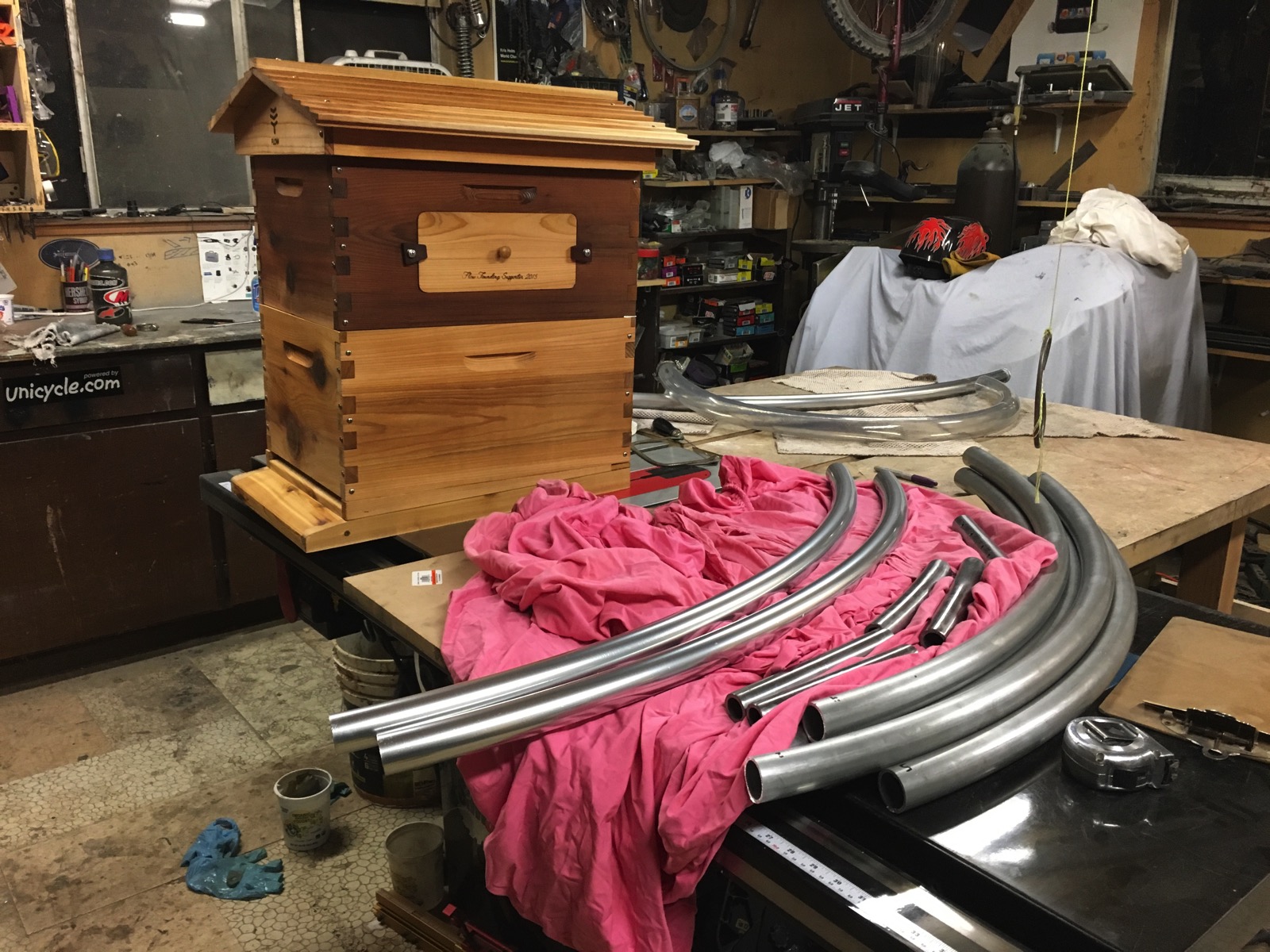

All the pieces during painting:

IMG 6019

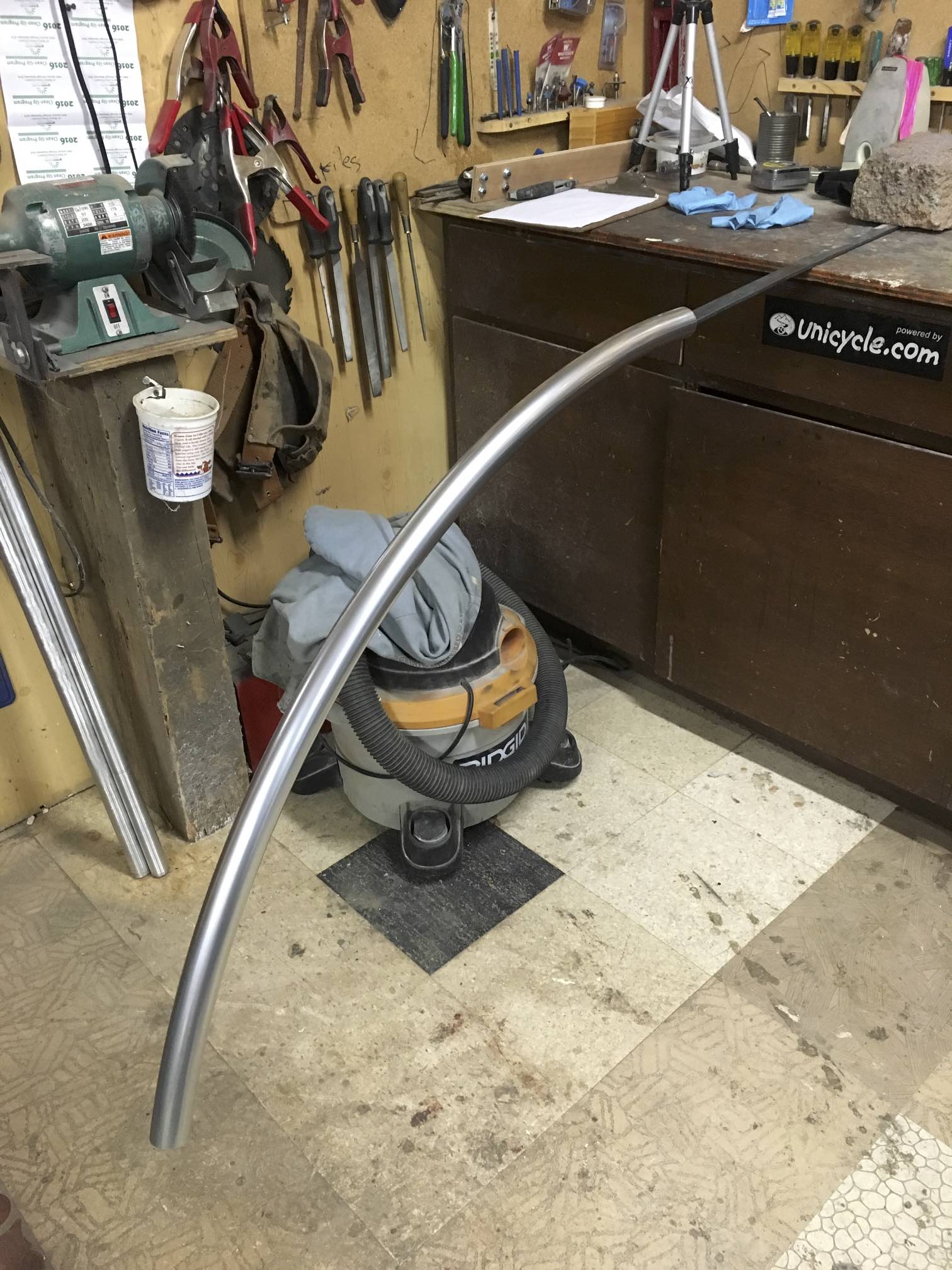

Cooling rack after powder coating:

IMG 6020

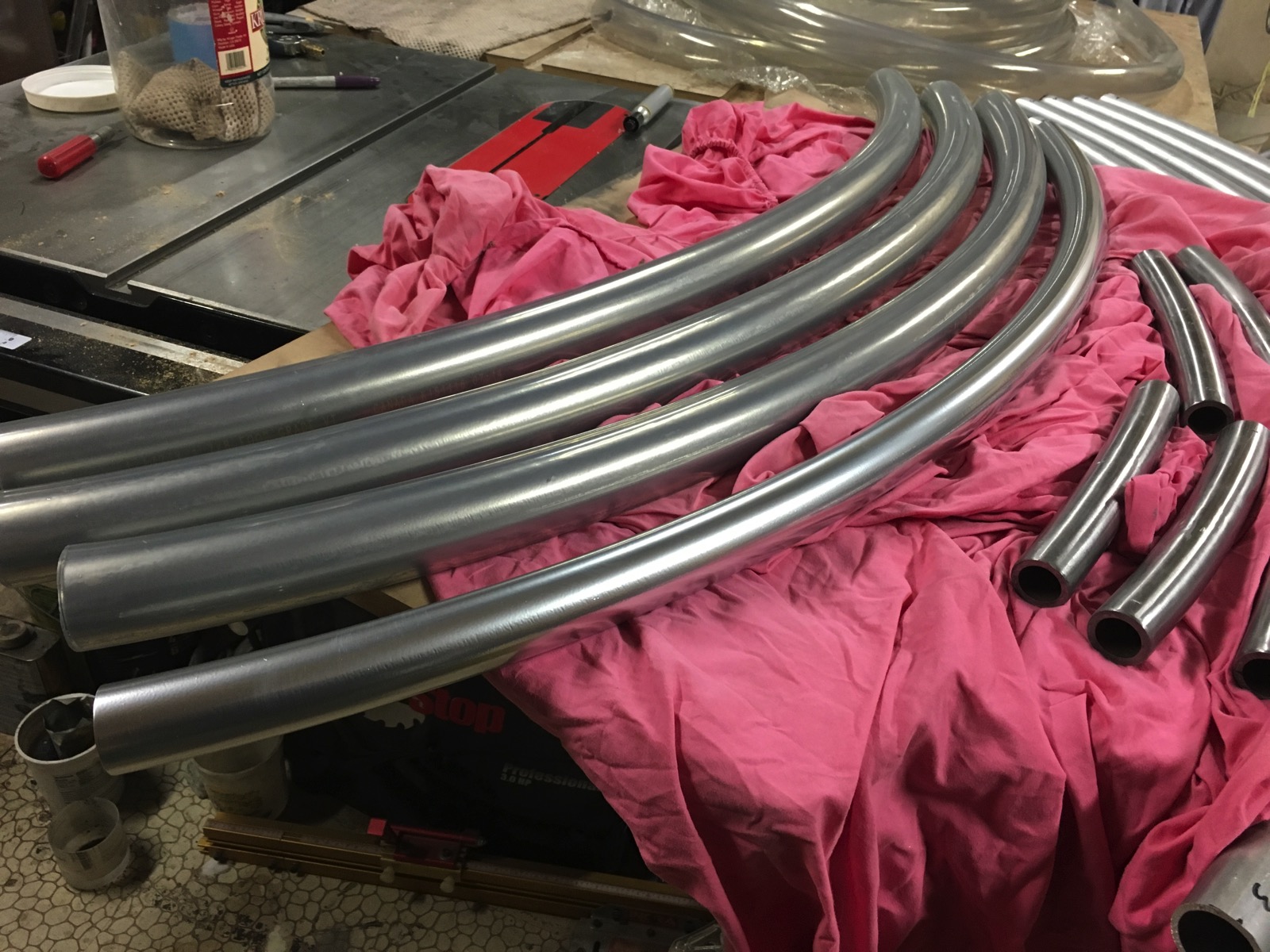

Skinned and un-skinned pieces together:

IMG 6037

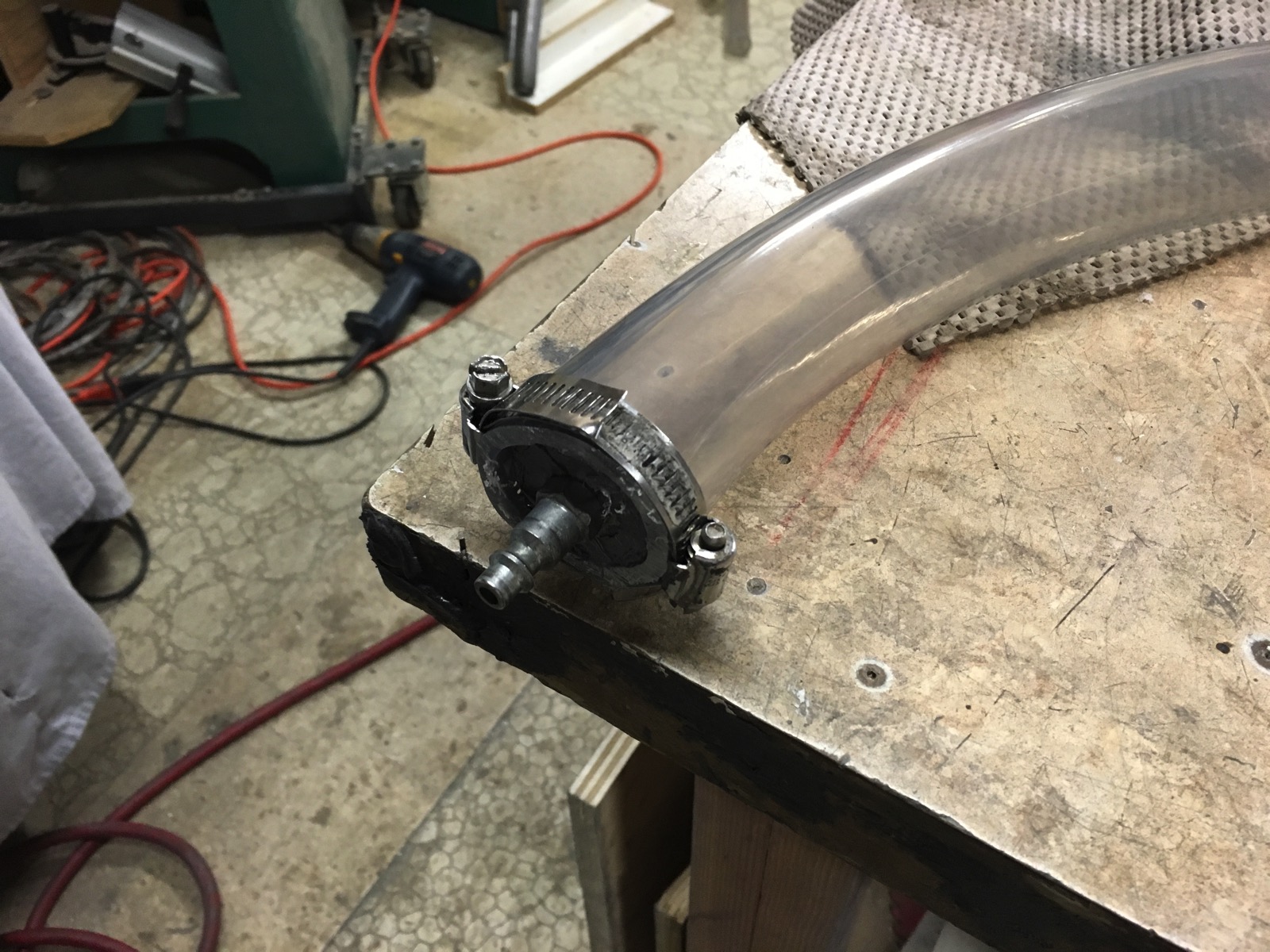

Detail on my air compressor setup for skinning:

IMG 6038

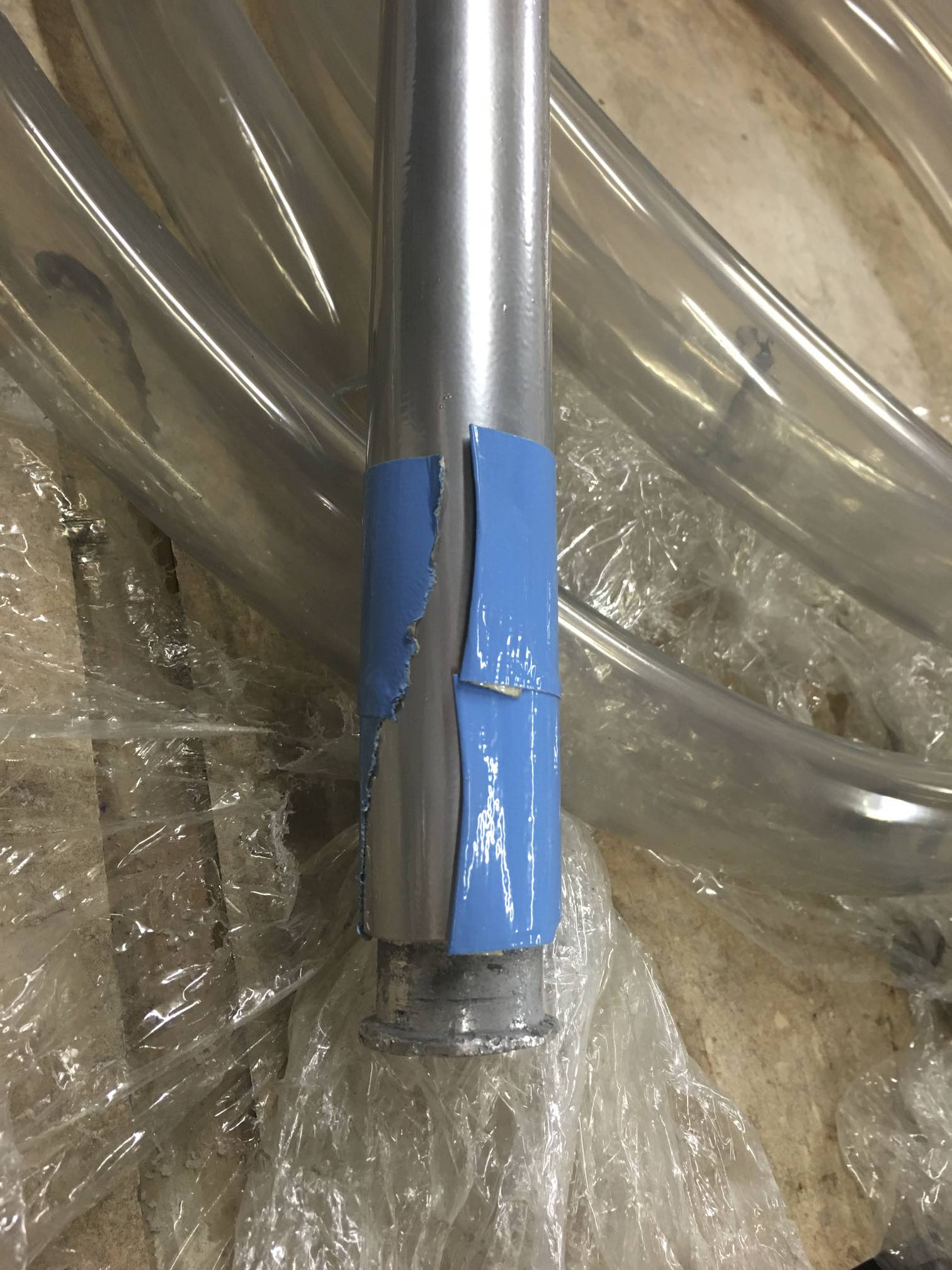

I put tape over the other end holes, and block the tube with an insert I made:

IMG 6039

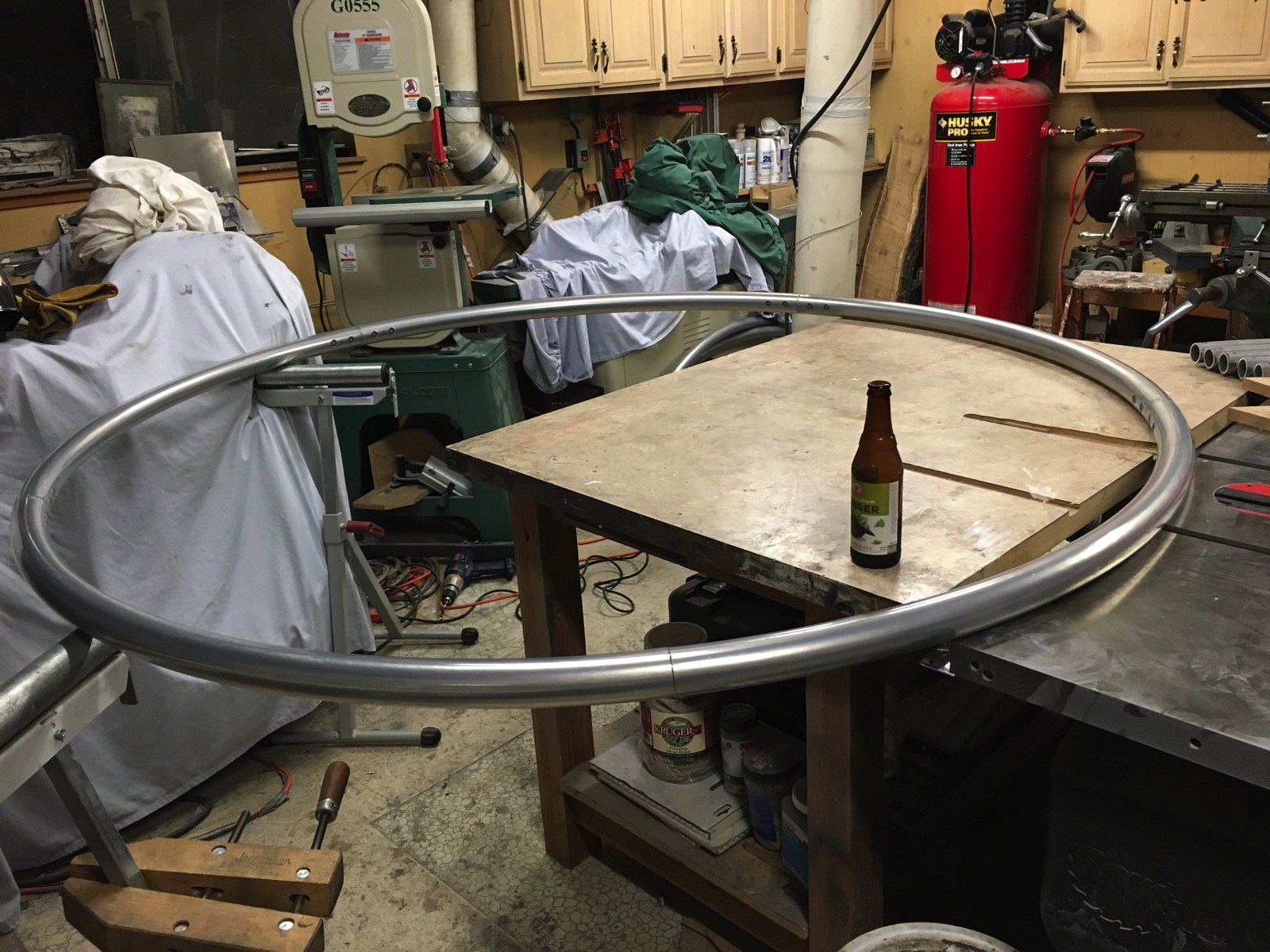

Completed wheel, before LED’s:

IMG 6040
