LED Cyr Wheel v2: Custom PCB

General

I finished designing a custom PCB for my LED cyr wheel. It simply combines all the chips I use into one board. Ideally I would eliminate all of the other boards except the Teensy, but I’m not so good at SMD soldering yet.

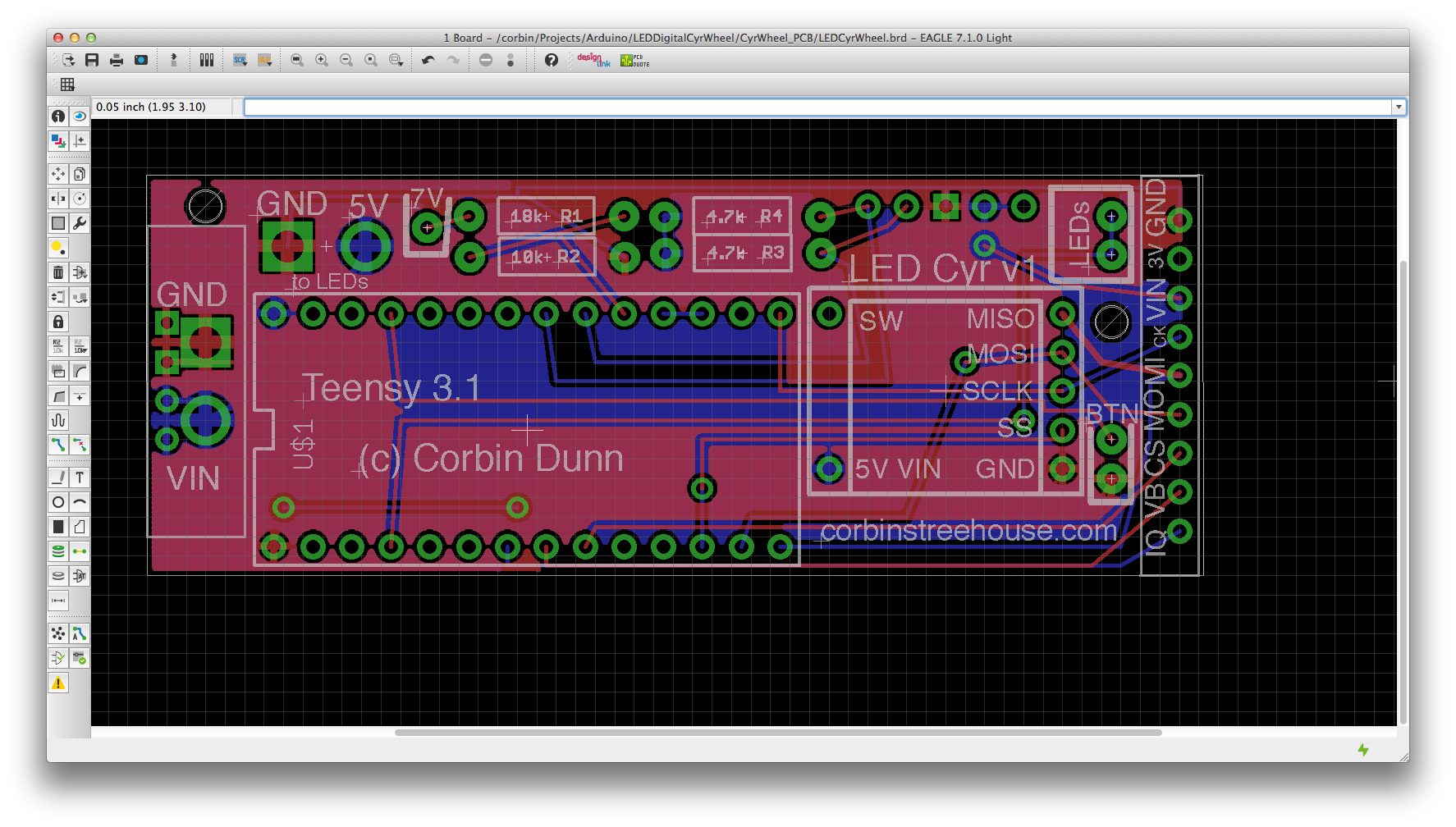

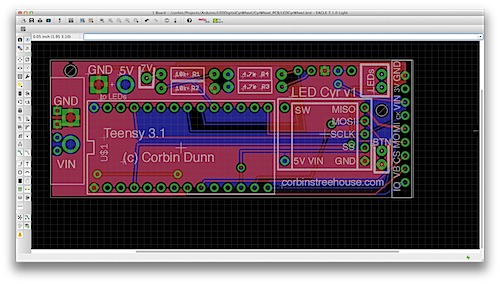

I designed it in Eagle:

Screen Shot 2014-10-10 at 9.20.18 AM.png

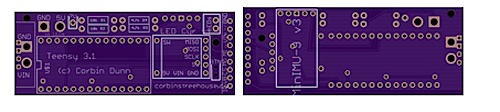

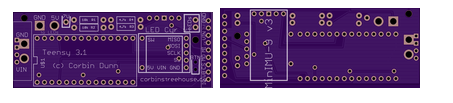

And I’ll be printing it with OSH Park based on advice from my friend Spencer.

This things should be awesome! It’ll be my first PCB, so i’m crossing my fingers that I did everything right.

Screen Shot 2014-10-10 at 9.22.18 AM.png
