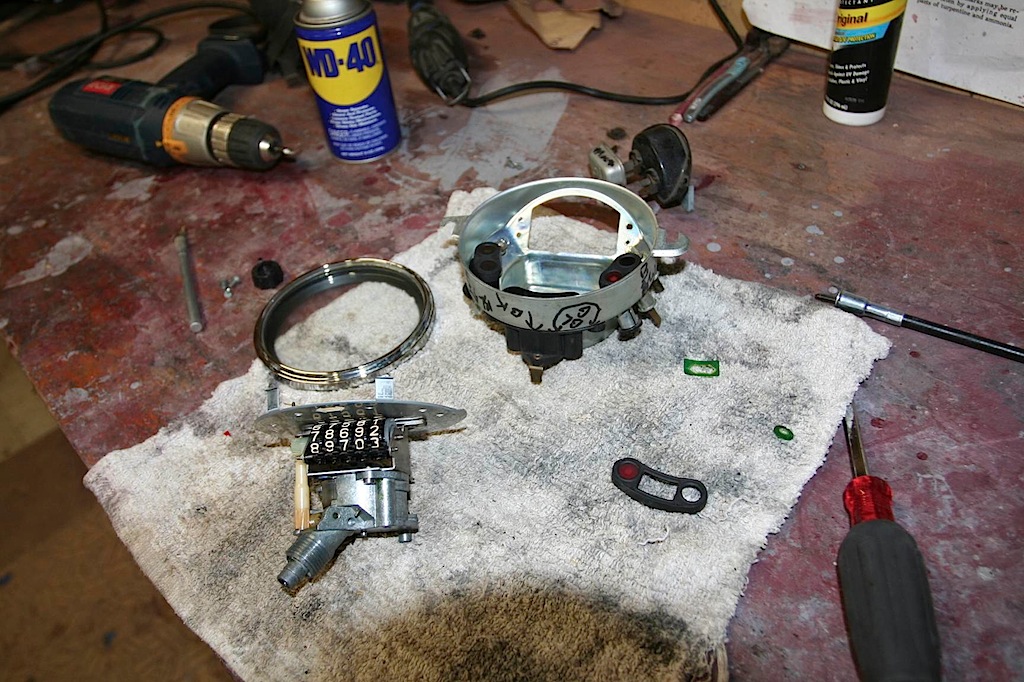

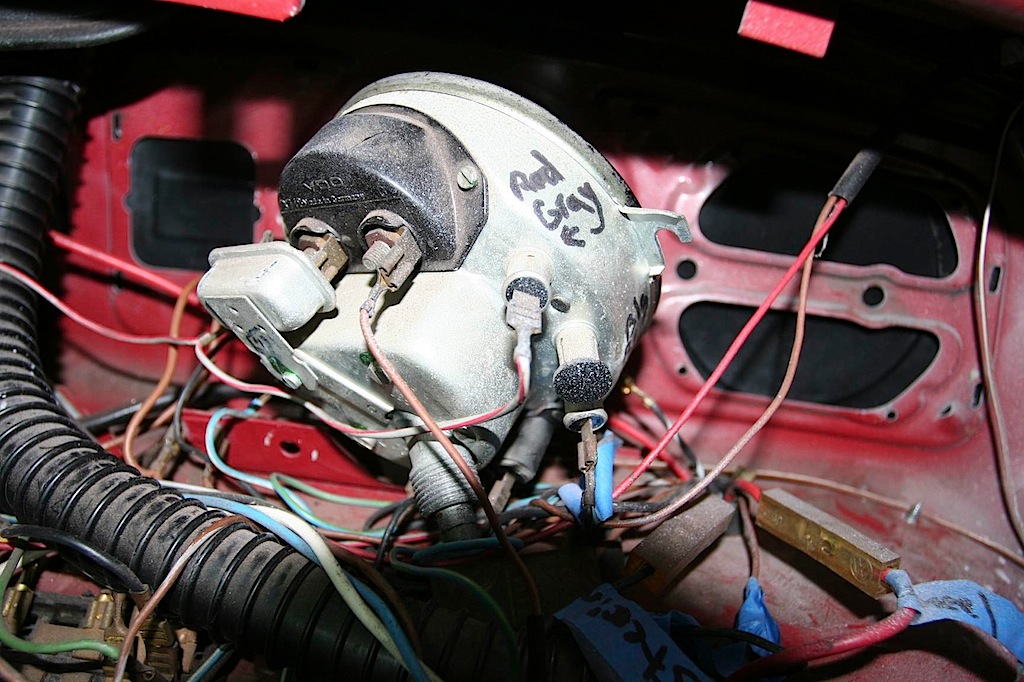

The speedo in the bug was broken. Ed, who I bought the car from, said it was just the cable that needed replacing and that he had replaced it a few times. I suspected something else must be wrong if he had to replace it more than once, and when I stuck the new cable in the speedo I realized it was really tight to turn (almost too tight), which would cause it to break the cable at the wheel (where it was broken). The speedometer also had some moisture in it, making the glass look a little foggy, and the turn signal indicator area looked dirty. So, I pulled it out and took it apart:

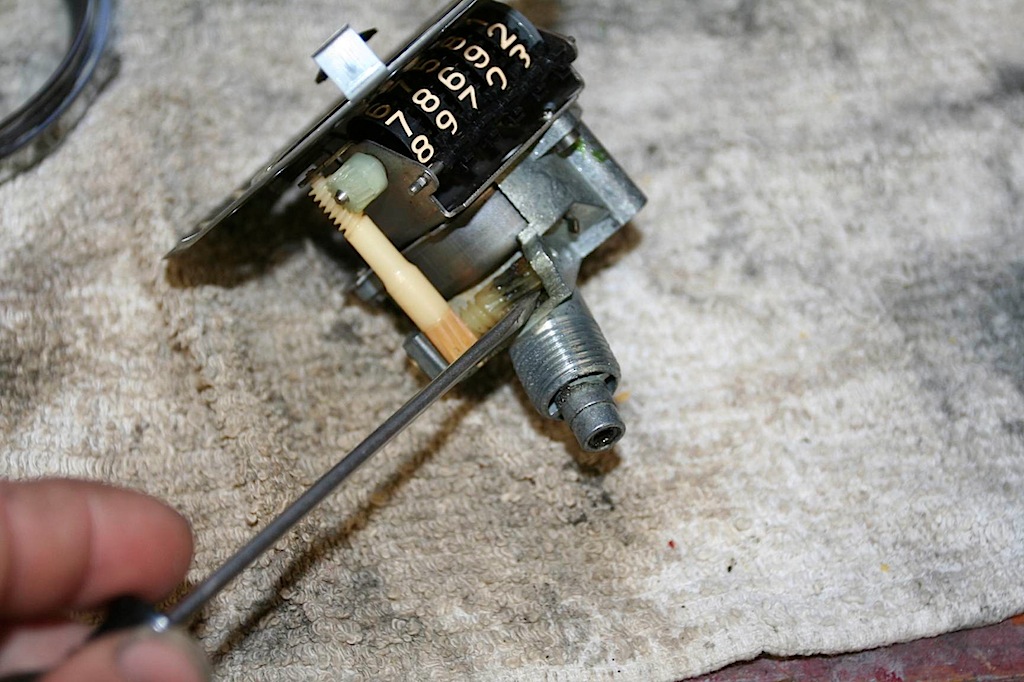

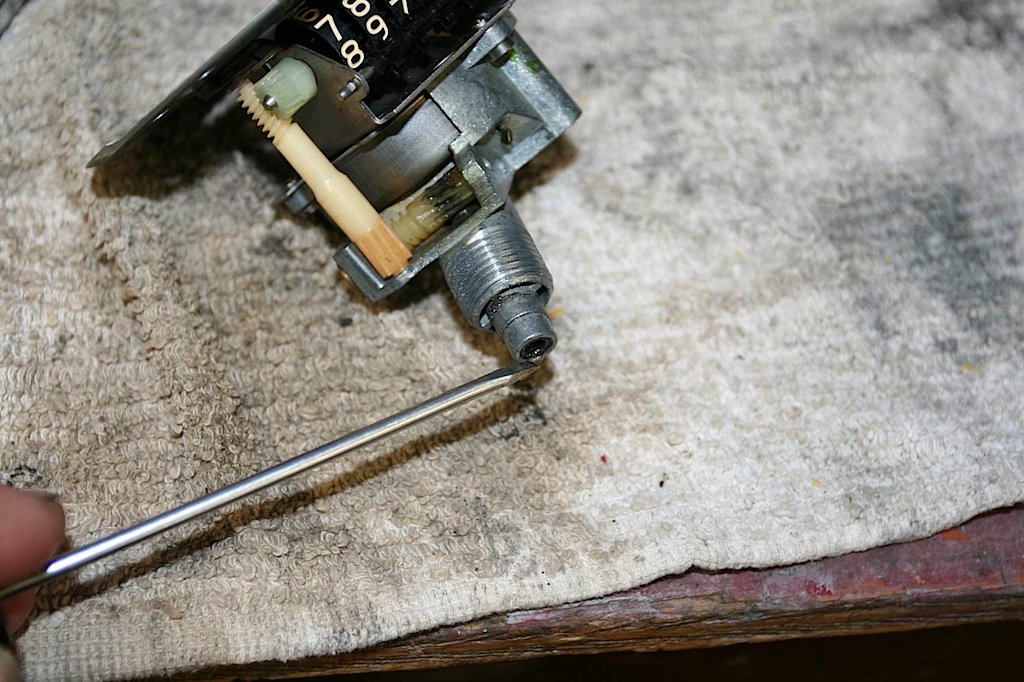

I added some WD-40 in two places, shown with the screwdriver:



That made it start working again like a champ. I also wanted to reset it back to 0 miles, but that looked more difficult to do, and I didn’t want to break it.

Replacing the turn signal area wasn’t too hard:

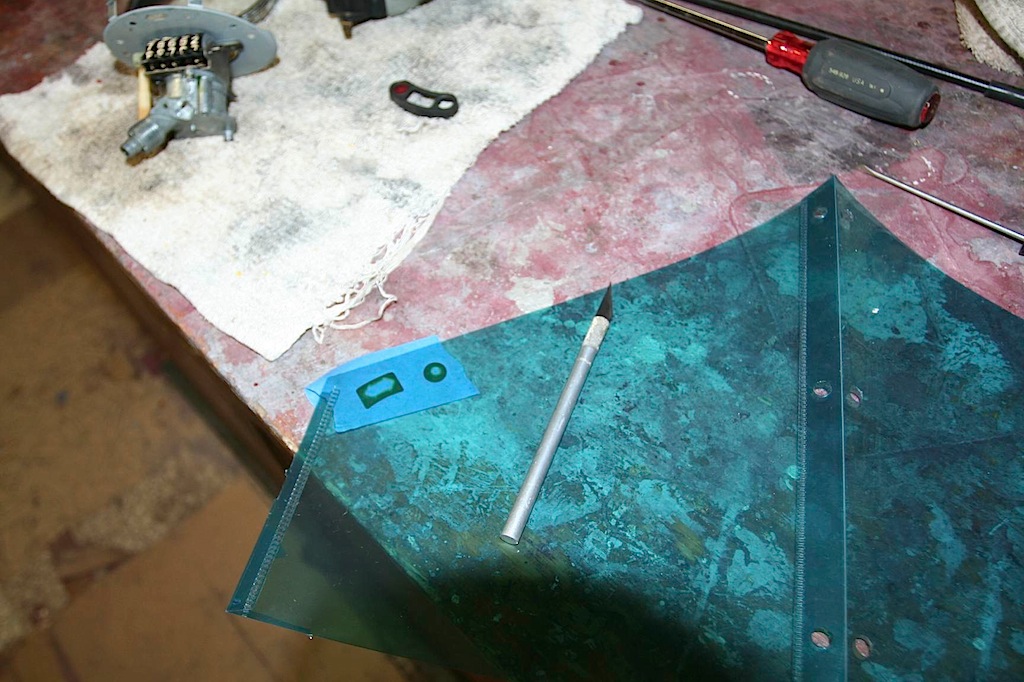

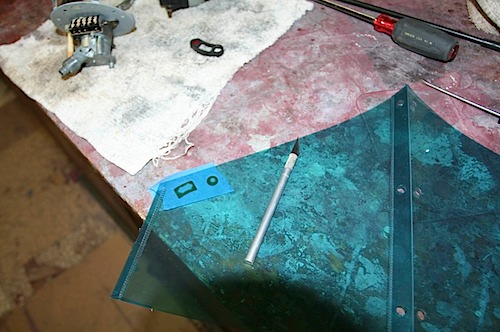

I cut a new little area out of some plastic inserts I got from an office supply store and stuck them in. I now realize I should have put two layers in, as it is too bright. Here you you can see me using the old one as a template taped to the back and cutting it out with an xacto:

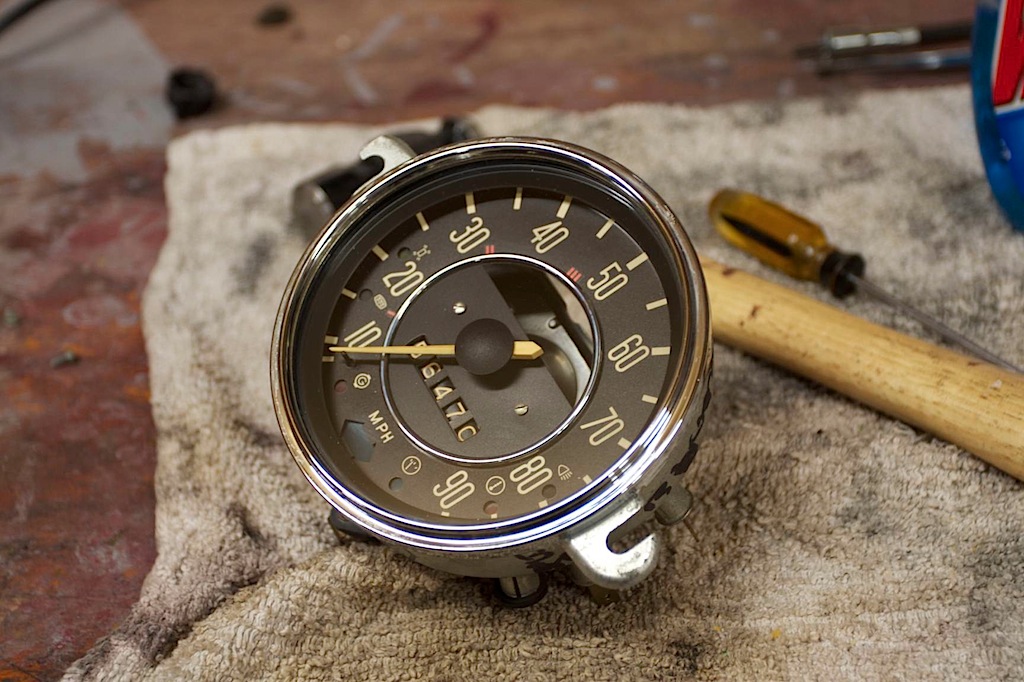

With the glass cleaned, it looks like new:

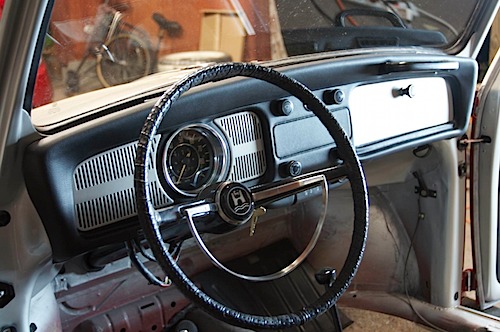

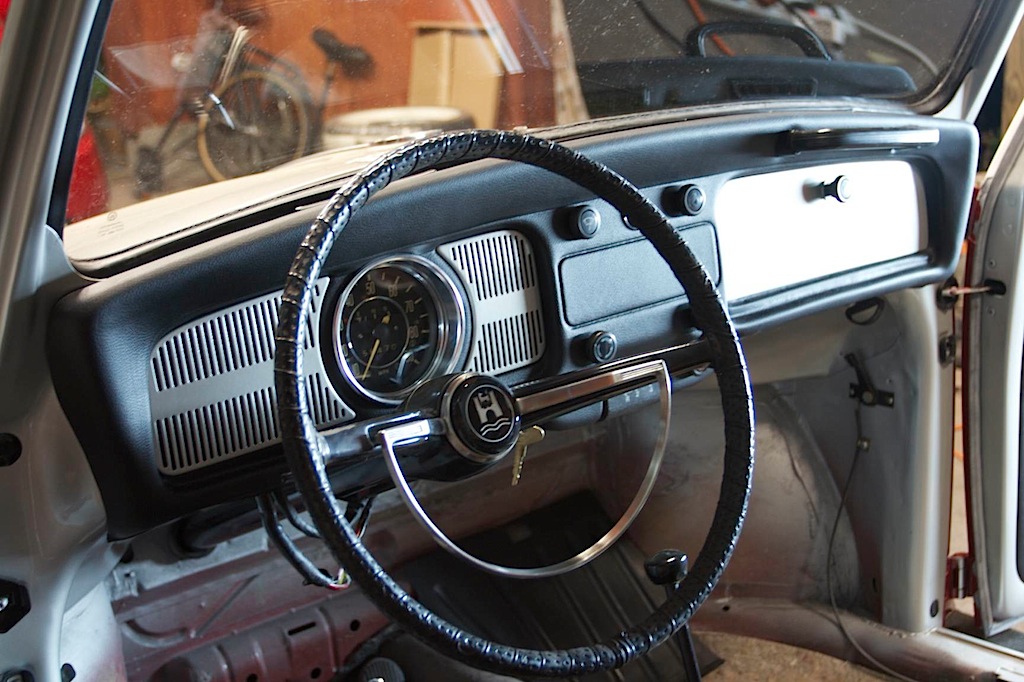

I also polished all the grime and old fake chrome off the steering wheel and put it back together. It looks great installed again in the new dash:


Previous Post
no_thumbnail
Weekend Fun and the Zip Line
Next Post
no_thumbnail
Missing Siamese Cat

5
Leave a Reply

avatar
500
5 Comment threads
0 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
3 Comment authors
DannycorbinJohn C. Randolph Recent comment authors
  Subscribe
Notify of
John C. Randolph
Guest
John C. Randolph

Be sure you follow that WD40 with some light machine oil. WD40 evaporates faster than you realize, leaving no lubrication at all.

-jcr

corbin
Guest

Really! I wish I would have know before I put it back together… I’ll have to pull it out to do it again. Well, I can hit some oil from the back — maybe I’ll do that.

Danny
Guest

A shot of graphite lube might do it. Graphite doesn’t evaporate or get sludgey.

corbin
Guest

that’s a good idea too — I also happen to have some.
