Plug Bug: Red Paint

Electric Bug

I basically have two jobs right now; working at Apple by day, and being a car painter at night and on the weekends. I’ve been working really hard to get the primer all sanded smooth and just perfect for painting the color. I tried to do some “block sanding” (good idea, Mark!) by getting some foam sanding blocks and using those to hold 400 grit wet/dry sandpaper on and wet sanding till it was perfect. I think it helped, and I’m glad I did it, as it also let me get rid of some orange peel left by the primer. After I did it with 400, I did it again with 600. I also filled in a few small indentations I found, but in the end I missed a few small dimples that didn’t show up until after I hit it with color. I could have caught those by doing true block sanding by first spraying a light coat of a dark color over the primer and sanding until it was all off (the low spots being left dark, meaning they are low spots). I masked the top of the car off and sprayed the fenders and lower body all nice and metallic red.

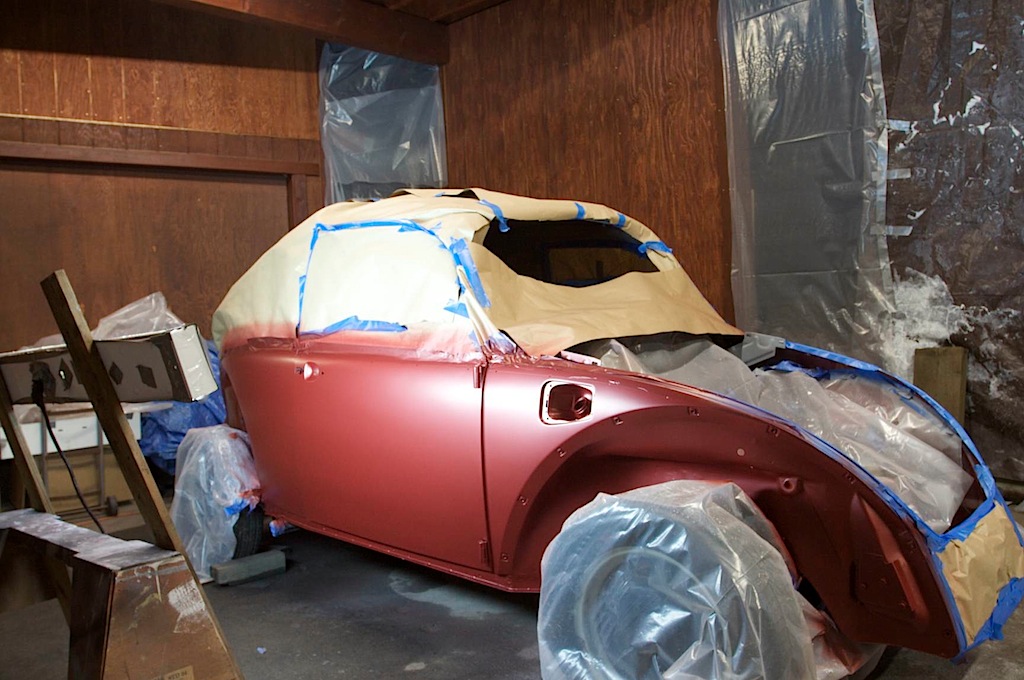

IMG_8974.jpg \

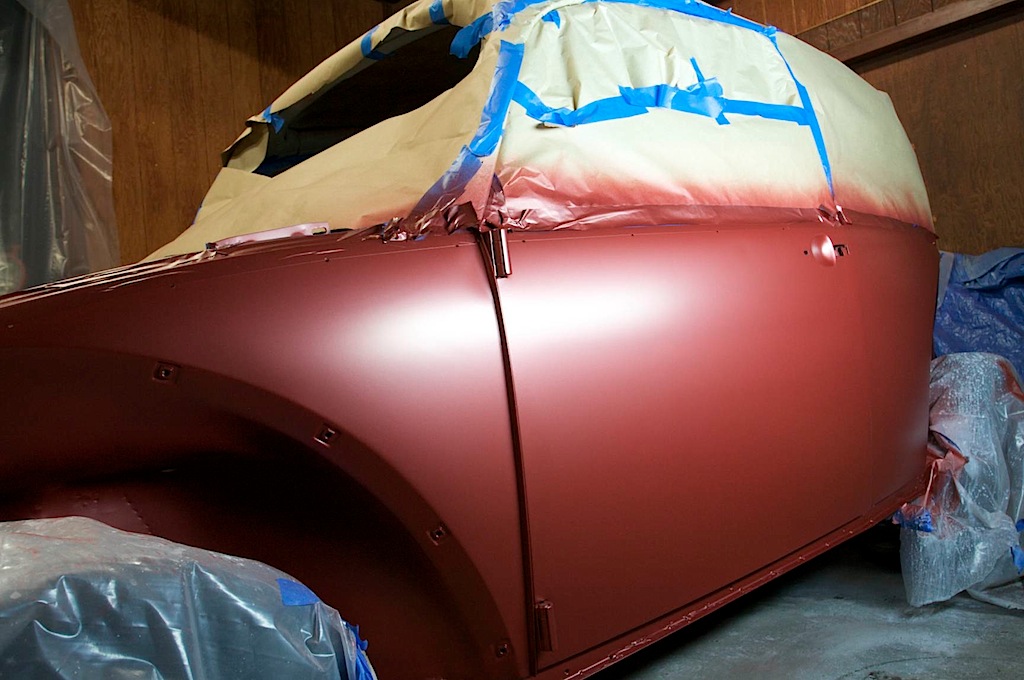

I had some problems with the door looking striped when you looked at it just at a certain angle. I solved that by putting more coats on (4 or 5 I think). One side still has a little bit of a stripe, but it is hard to see it. I may paint one more coat on to get rid of it. I tried to take a picture of the problem, but it doesn’t show up. It just looks glassy smooth (and this side is perfectly glassy smooth — the finish turned out REALLY nice!).

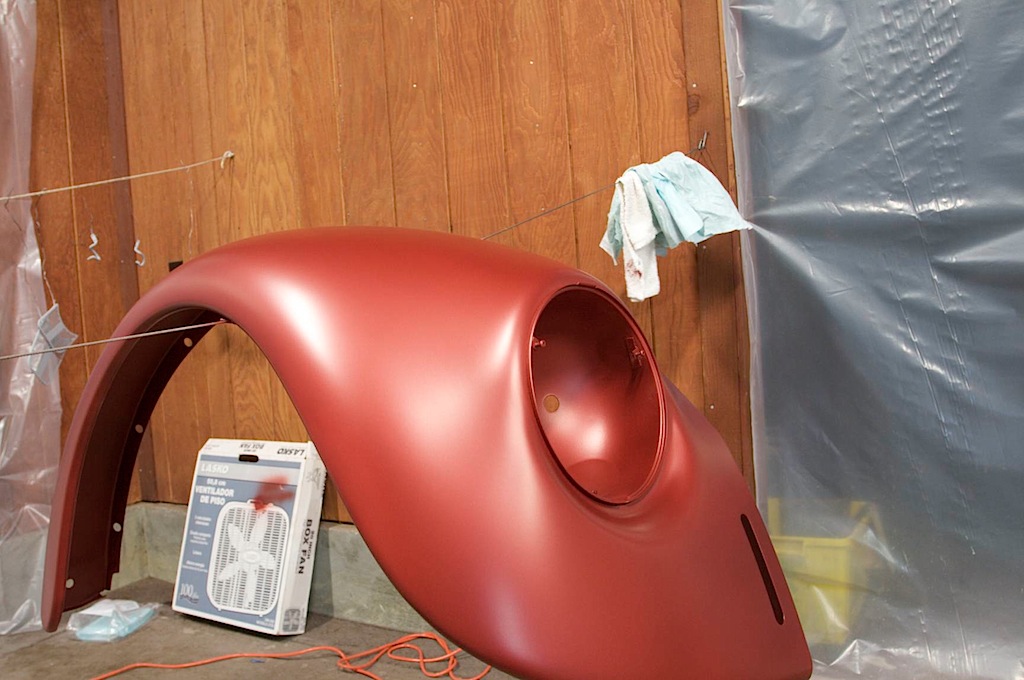

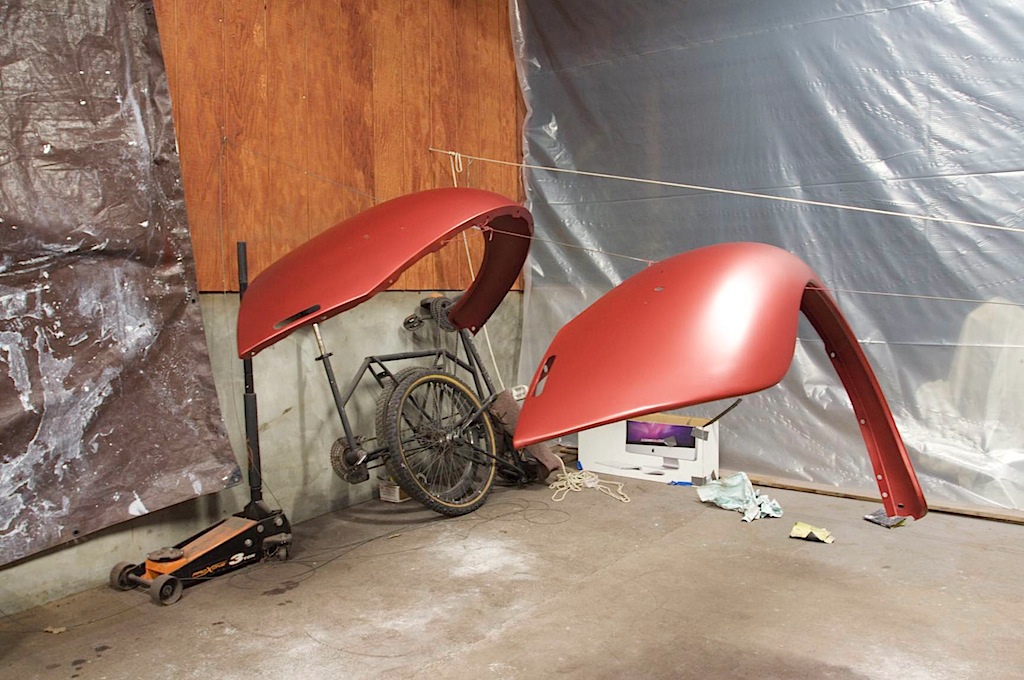

The fenders have 3 coats on them. One has a little dimple at the top, but you’d have to look hard to see it.



It looks great so far.

Note to self: the primer goes on really thick and slightly orange peel’ish, no matter what I do. Sanding to 400 grit seems sufficient to get a good finish (I don’t think 600 was necessary), and I need to spray with a wide pattern to avoid stripes. The wide pattern is when the gun nozzle is slightly turned in from level; too far in, and the pattern is too “tight” and doesn’t fan out enough.

Previous Post
no_thumbnail
Plug Bug: Primered
Next Post
Plug Bug: Two tone bug

3
Leave a Reply

avatar
500
3 Comment threads
0 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
3 Comment authors
corbinJohn C. RandolphStan Dunn Recent comment authors
  Subscribe
Notify of
Stan Dunn
Guest
Stan Dunn

Looking good, the primer sure hlps show imperfections

trick to painting and getting it to fan just right

lookslike you are figuring it out

have a great fourth

dad

John C. Randolph
Guest
John C. Randolph

Going with a different color on the top?

-jcr

corbin
Guest

hey john, it’ll be silver on top. I have it all masked and ready to paint; tomorrow morning will be judgement day to see how it all turns out!

I ended up painting one more coat on the doors, and I realized I also wanted the frontal small area red (so I did that today). There’s still some small striping on the sides, but I don’t want to resand and start over, so it is how it ends up being.
