Here’s how I strap the Thundersky batteries together.

As previously mentioned, I bought the Mini Polyester Strapping Kit 5/8″ x .040″+seals + tools for $80 (plus shipping) on ebay.

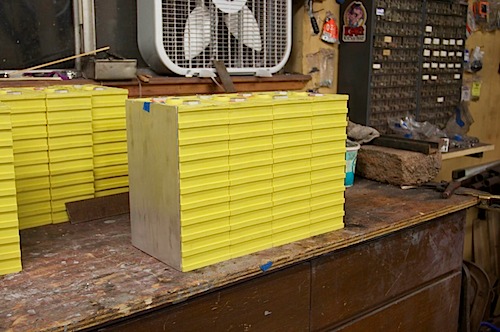

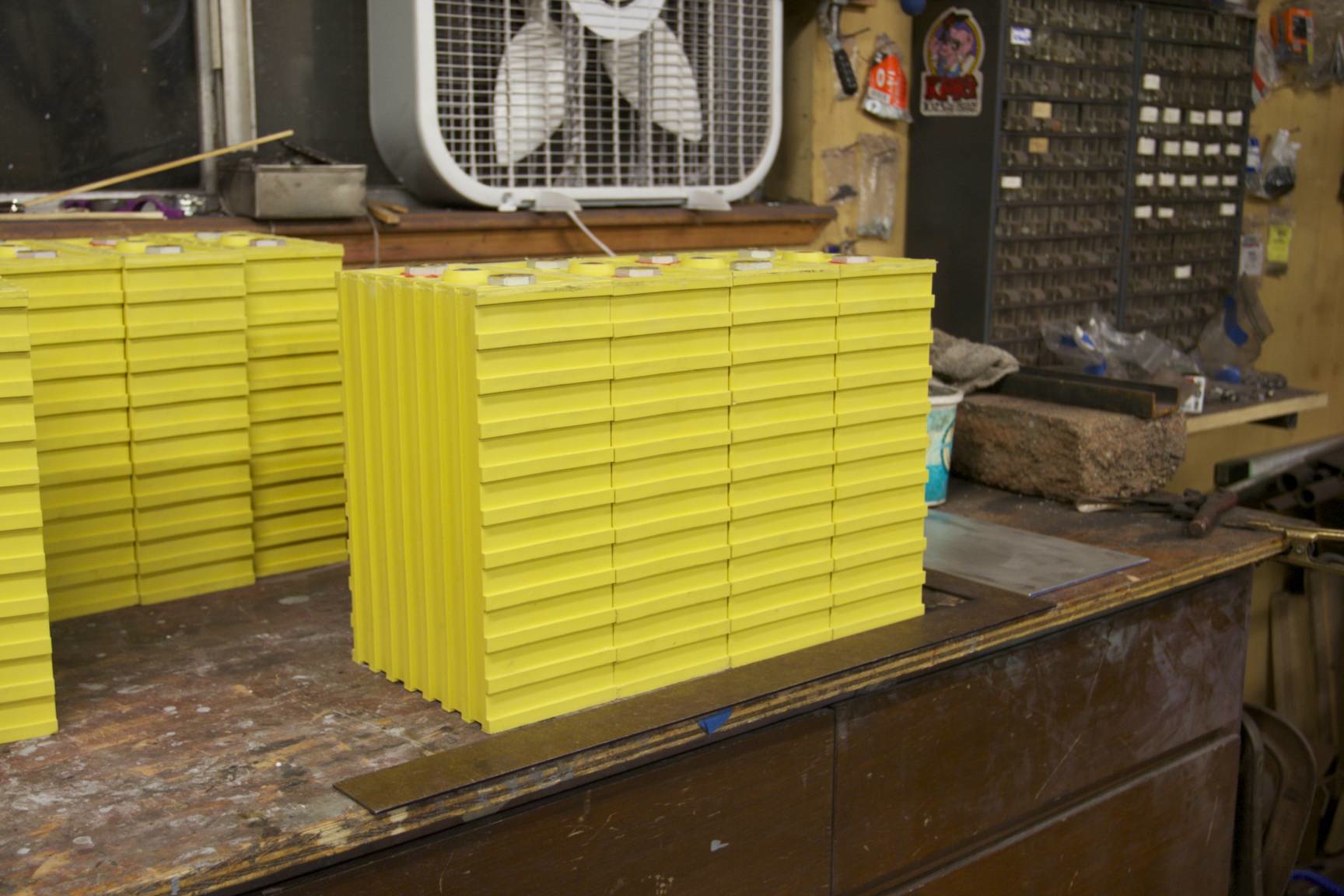

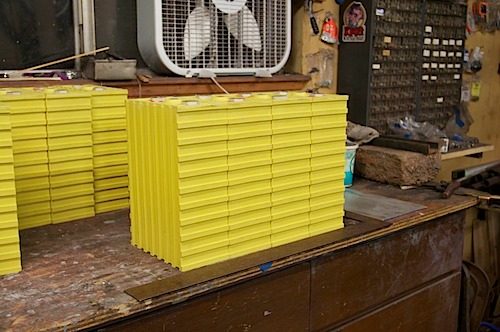

The pack of 4 (or 5) cells is squared with a regular square. Be sure to line up the terminals in the direction you want them. I ended up restrapping one cell again. Actually, I did it twice; I actually strapped it back together in the same configuration that I took it apart in (doubt!).

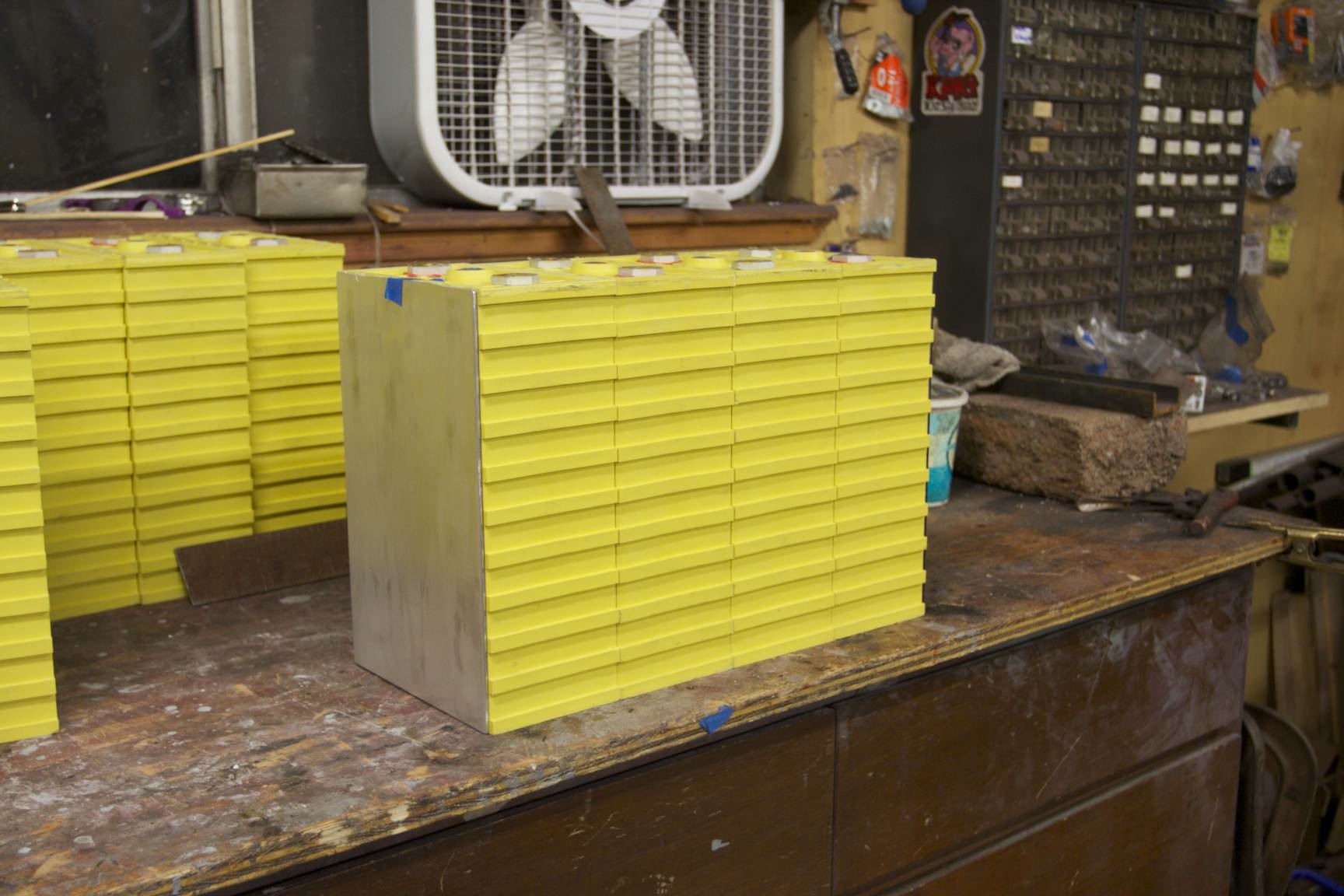

Tape on the end pieces (1/8″ thick aluminum sheet). Twice I forgot to do this and had to restrap the bottom one again.

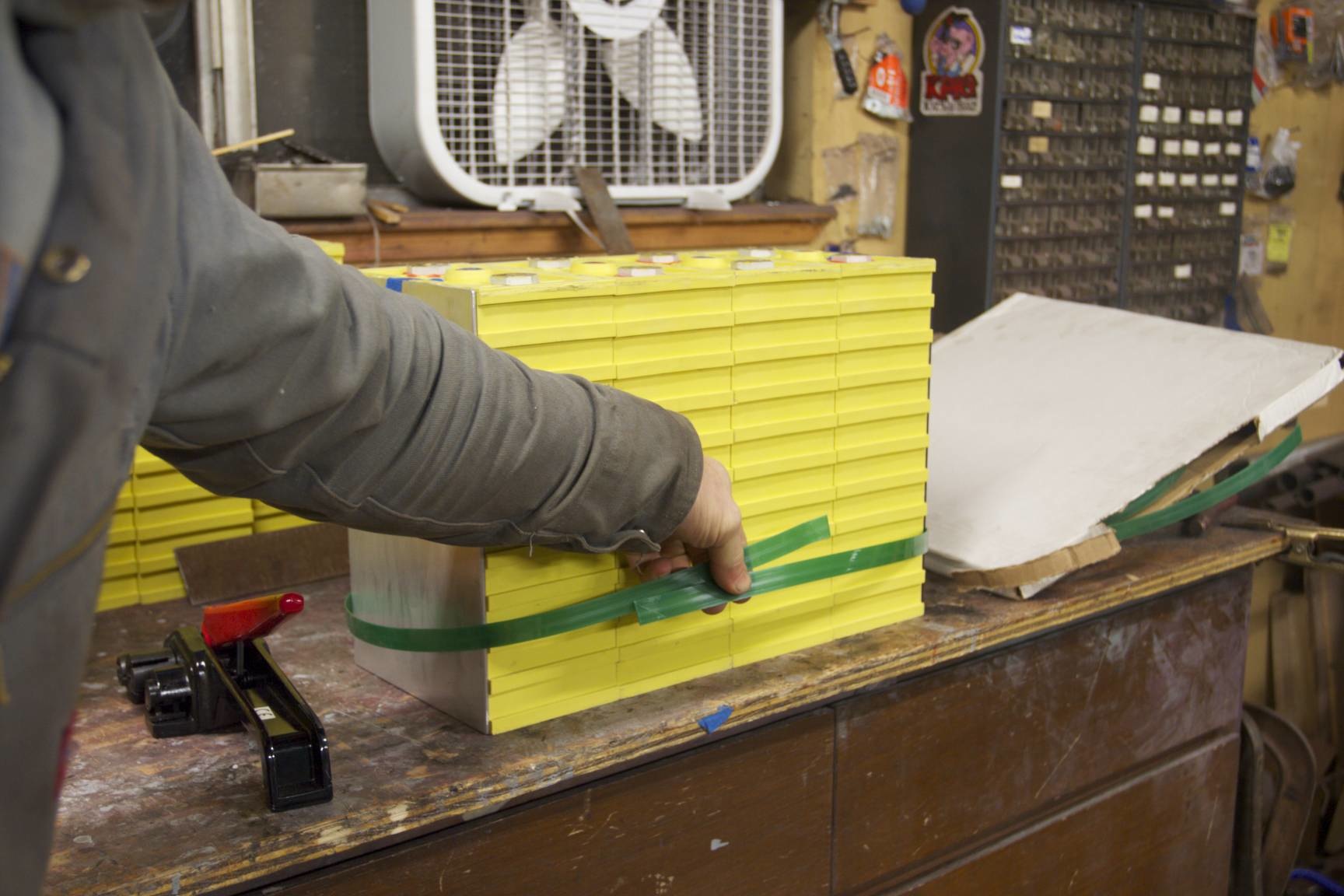

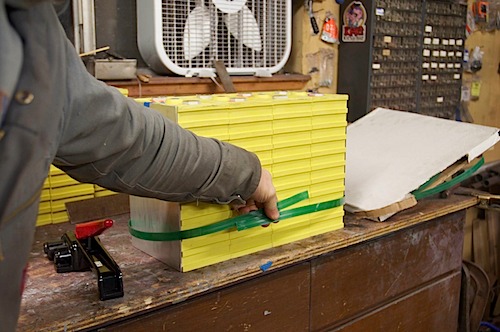

Cut the strap with some excess:

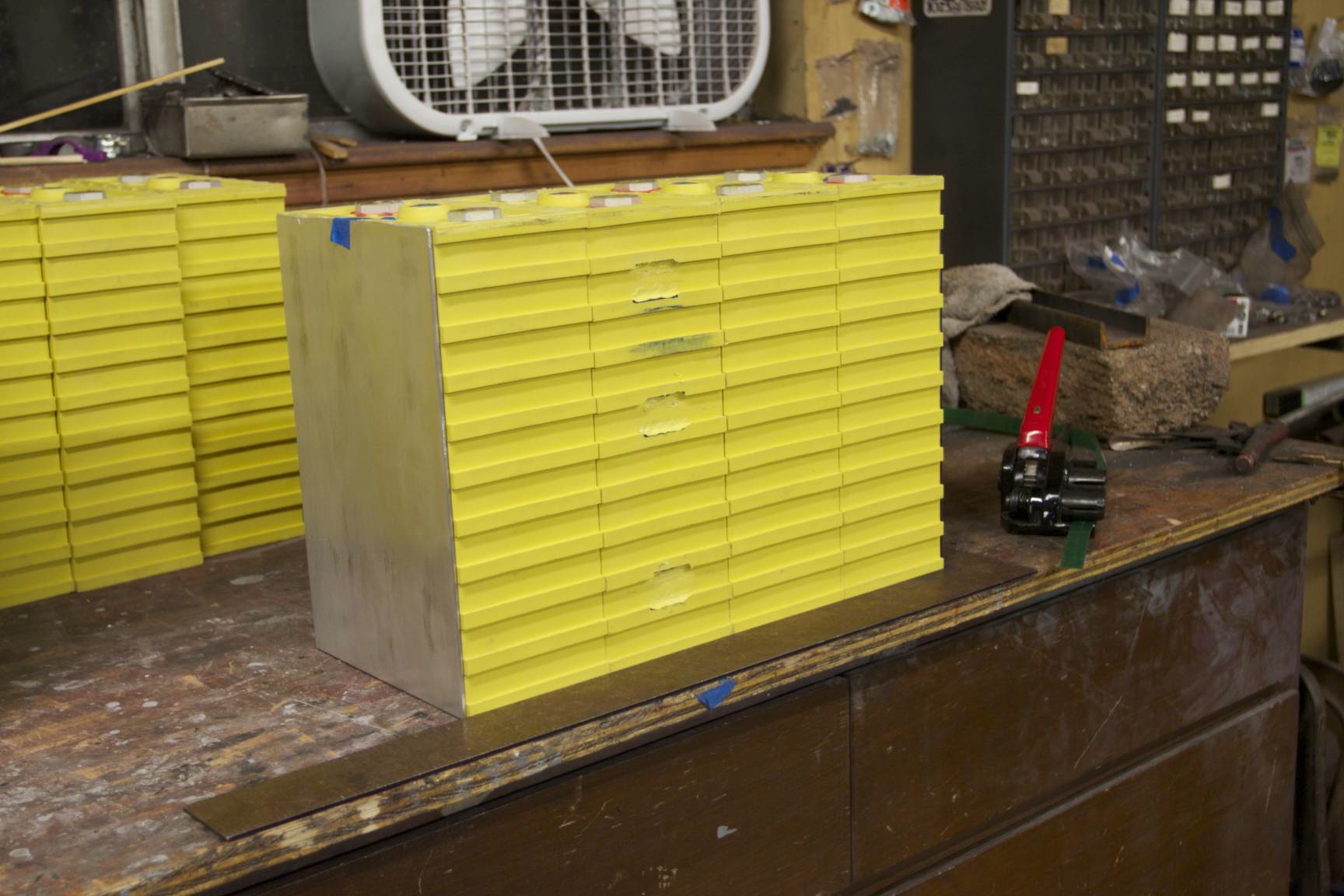

Put the strap in the bottom of the strap tension tool:


I dremeled out little sections to allow the strap connectors to sit (somewhat) flush:

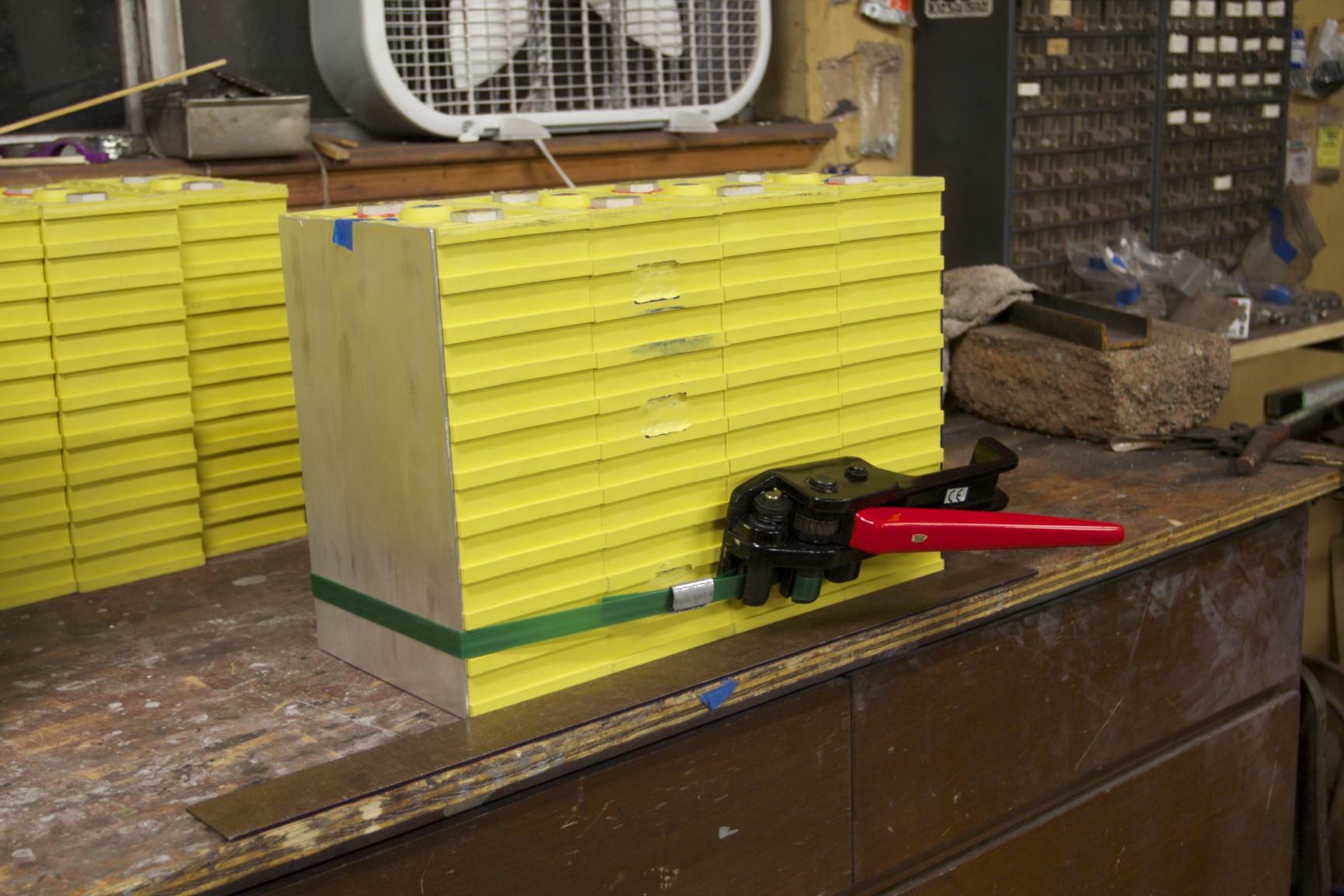

Strap lined up with the tool and brought up to tension with the ratcheting mechanism:


Clip slipped on over the slot and the crimped on with the crimper tool. After crimping, but before cut-off, I file the rough part of the edge off.

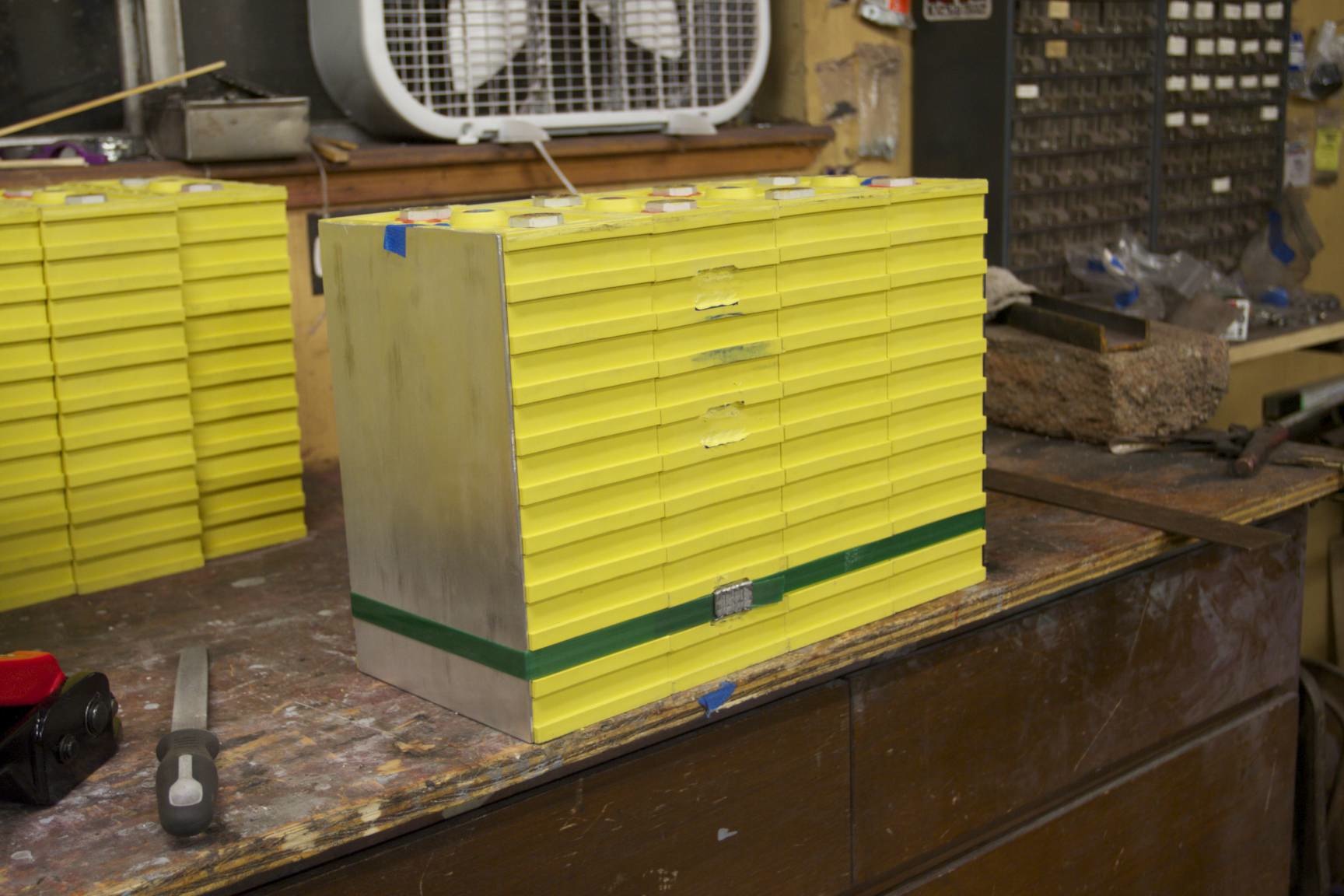

Finished strap:

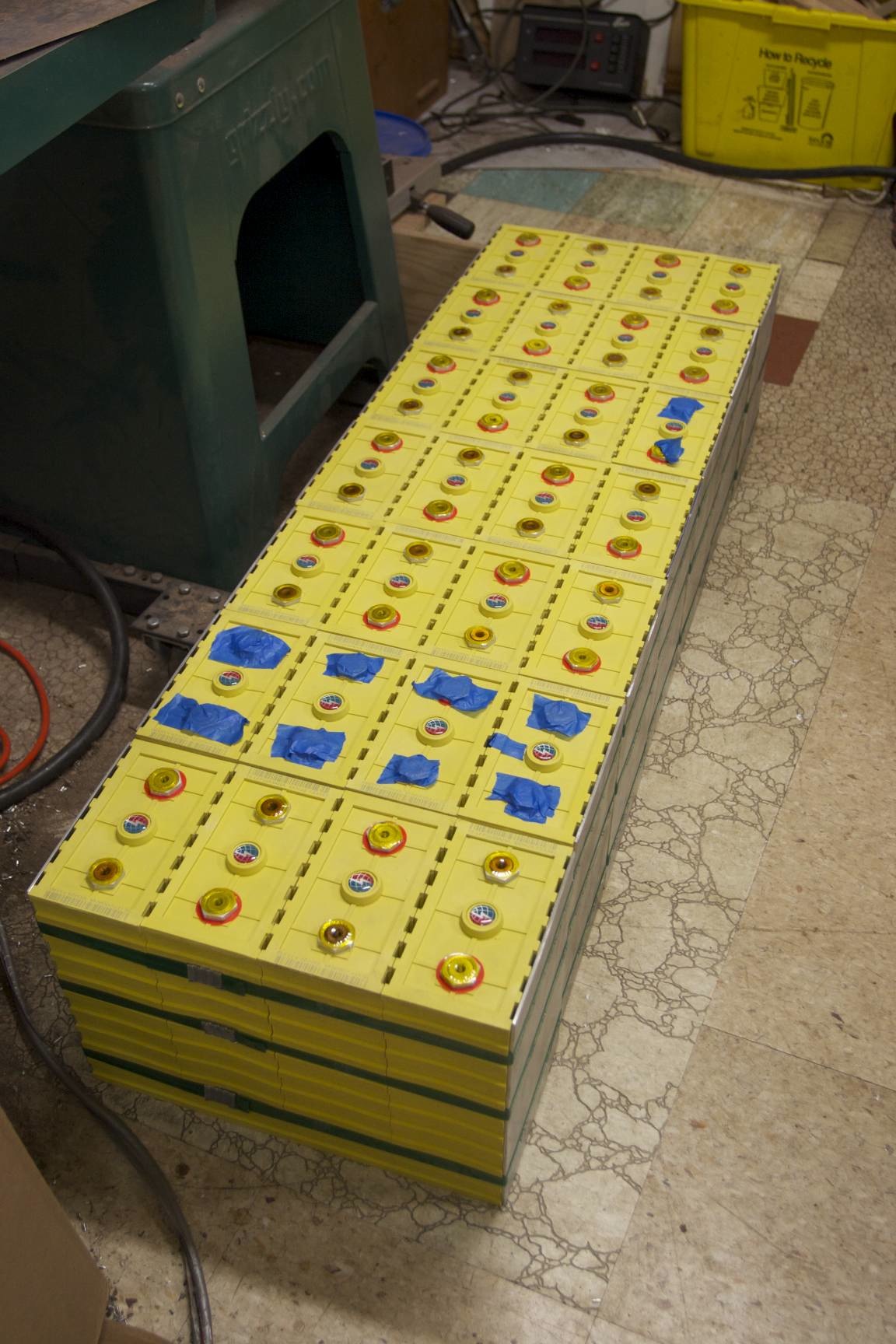

A whole lot of cells (this is most my rear pack):
