The best way to see if the batteries will fit is to do some mock ups. I made some crude ones out of cardboard boxes. Here’s where I plan to put some of the front cells:


And the rear:

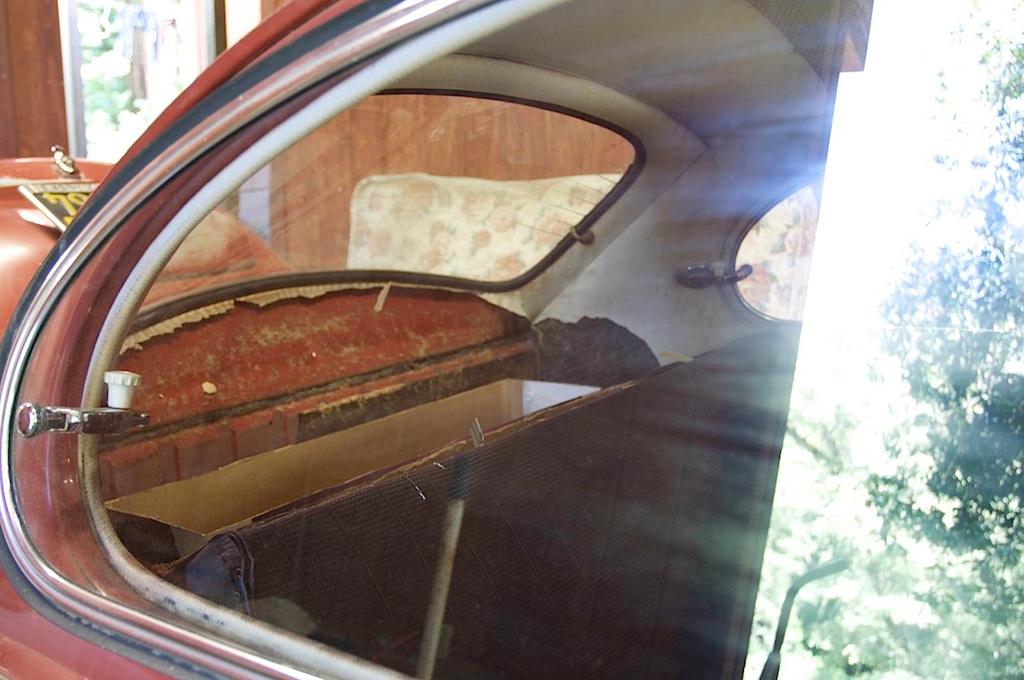

I may end up modifying the rear seat slightly to hold two more cells in a more square and uniform pattern.
